The right 24-inch wall circulator depends on the job you need it to do, the air movement the room requires and the conditions around the installation—not on blade diameter or 1,440 RPM alone. By the end, you can compare the 18-inch and 24-inch options, request the missing performance data and check whether your Chennai site can safely support the fan.
Key takeaways
- Use a circulator for air movement, not fresh-air replacement or contaminated-air extraction.
- Compare airflow delivery and coverage rather than relying on RPM or sweep diameter.
- Check wall strength, electrical supply, dust, heat and moisture before installation.
- Choose the model with accessible parts, low downtime and manageable cleaning needs.
Start with the job: circulation, cooling or extraction
A 24-inch wall circulator suits a factory, workshop, warehouse, garage or loading bay when the job is to move and mix air across an occupied area. It cools people by increasing air movement; it does not lower the room temperature, add fresh air or remove contaminated air.
If the process produces welding fumes, solvent vapour or dust, use a designed supply-and-exhaust system with a hood, ductwork and discharge fan instead.
For a wall air circulator for factories in Chennai, compare delivered airflow and operating noise rather than relying on the 24-inch sweep or a 1,440 RPM label. Free-air delivery is not the same as airflow through resistance from a louvre, partition, filter or duct.
Ask for the exact model’s airflow figure, test condition and sound level. “Heavy duty” is not a standard performance class.
A 24-inch Almonard heavy duty air circulator in Chennai is a practical choice for open areas where air must reach the occupied work zone. Check the required throw distance before ordering: a fan mounted too high, aimed at racks or blocked by machinery can leave workers uncomfortable despite strong airflow at the guard.
Select another fan type when the application needs high static pressure through ductwork or a long exhaust path. Confirm the model’s phase, voltage, full-load current, overload protection and mounting arrangement against the site supply.
Compare airflow, not just 1,440 RPM or 24-inch sweep
Compare delivered airflow at the installation condition, air throw at the occupied work zone, operating noise and electrical input—not just 1,440 RPM or a 24-inch sweep. A 24-inch Almonard wall circulator can move air differently from another fan with the same nominal diameter.
| Measure | Fan A | Fan B | What to check |
|---|---|---|---|
| Airflow | CMM or CFM | CMM or CFM | Confirm whether the figure is free-air delivery or measured against resistance |
| Air velocity | m/s at the work zone | m/s at the work zone | Shows whether air actually reaches workers |
| Throw distance | Metres to the target area | Metres to the target area | Compare at the same mounting height and angle |
| Noise | dB(A) at a stated distance | dB(A) at a stated distance | A louder fan can reduce comfort in occupied areas |
| Input power | Watts or kilowatts | Watts or kilowatts | Relates output to running cost |
| Electrical supply | Phase, voltage and current | Phase, voltage and current | Prevents an installation mismatch |
For a 24 inch industrial wall fan in chennai, ask for the exact datasheet and test conditions. Free-air CMM or CFM figures are not interchangeable with airflow through louvers, filters, partitions or ductwork; use the fan curve when resistance exists.
Record the throw required at the work zone. Racks, machinery and a high mounting position can interrupt a powerful stream, while “heavy duty” alone proves no standard performance class. Confirm speed control, guard, enclosure, mounting arrangement and duty cycle for the exact model.
Choose fan size and position from the room layout
Size and position should follow room volume, heat sources, worker locations and obstructions—not floor area alone. Record ceiling height, hot equipment, occupied workstations, racks, partitions, doors, supply openings and exhaust points before choosing one 24-inch fan or several smaller units.
A nominal 24-inch sweep is about 609.6 mm, but the guard and bracket need more wall clearance. Check the manufacturer’s dimensional drawing. Aim the airflow across the occupied work zone, not over workers’ heads or into a rack.
Measure the required throw at that zone and compare it with delivered airflow at the installation condition; free-air CMM or CFM does not represent performance against louvers, filters or blocked passages.
| Layout condition | Practical choice | Positioning priority |
|---|---|---|
| Open workshop with one hot machine and nearby workers | One 24-inch fan if its throw reaches the workstation | Aim across the workers and past the heat source |
| Long bay with separated work areas | Multiple fans, sized for each occupied zone | Prevent one fan’s stream ending at a rack or partition |
| Dense racks, ductwork or enclosed machinery | Check the fan curve; a wall circulator may be unsuitable | Use equipment rated for the system resistance |
For industrial air circulation fan size in chennai, calculate room volume and the required air-change or comfort objective, then verify existing supply and exhaust paths.
When comparing almonard heavy duty wall fan options in chennai, confirm sweep, motor, speed control, phase, guard, mounting and duty cycle in the exact datasheet; “heavy duty” is not a performance rating.
Verify the wall, electrical supply and site environment
A fixed wall fan is only as safe as the wall, supply and surrounding process allow. Check that the structure can carry the fan and withstand vibration, with anchors suited to concrete, brick or steel.
Leave clearance for the guard, blade removal and motor servicing; keep the fan away from racks, cranes, doors and moving machinery.
- Confirm the supply before comparing models: rated voltage, 50 Hz frequency, single- or three-phase operation, full-load current and starting current. A 230 V match alone does not prove compatibility. Check the distribution board’s overload protection, earthing and whether a lockable local isolator is required.
- Record the installation environment: dust, water spray, rain, corrosive vapour, ambient temperature and wash-down practices. Select enclosure protection and materials for those conditions, not for a clean office.
- Identify welding fumes, solvent vapour, combustible dust and process heat. A circulator mixes air; it does not replace a designed supply-and-exhaust system. Do not use a standard fan in a classified explosive atmosphere.
- If the area is hazardous, match the marking to its gas or dust group, temperature class, hazardous-area classification and certification. “Flameproof” alone is not enough.
For a wall air circulator for factories in Chennai, document the required air throw at worker height, existing openings, obstructions and mounting location. If the fan must push through filters, ducts or a long exhaust route, check its fan curve; an axial circulator can fail under high static pressure.
Give Shine Agencies these site details when requesting a quotation.
Related products
 | 18"Air CIR Wall Aircirculator ₹10250 Almonard 18 inches air Circulator Heavy duty wall mounting fan industrial model fan. |

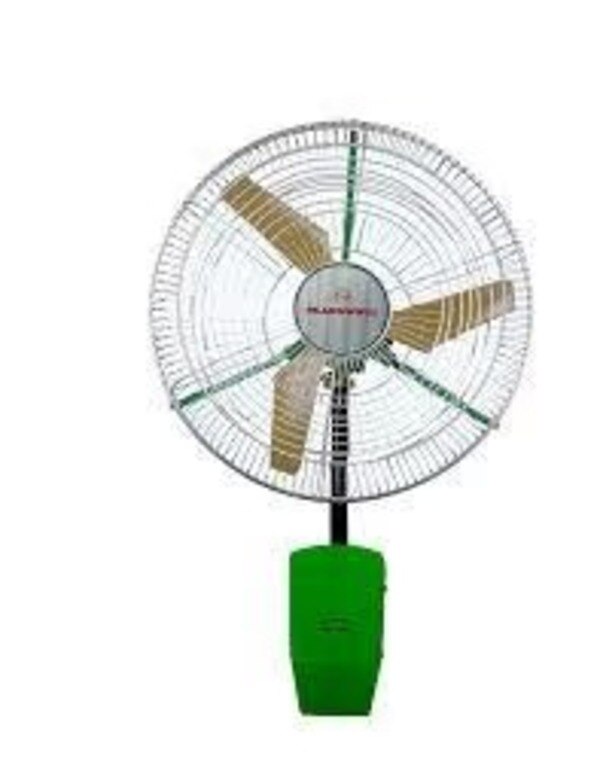

 | Industrial fan 24 inches Almonard Heavy Duty Air Circulate Wall Mount Fan ₹13350 No. of Blades : 3 green checkType : Wallmounting fan green checkMounting Type : Wall Mount green checkPower Supply : 230 V green checkVoltage : 230 V... View product → |
Make the final choice using operating cost and maintenance needs
Choose the 24-inch wall model when one fixed position must move air across a broad, open work area for many hours, and the delivered airflow justifies its electrical demand.
A 24-inch Almonard heavy-duty air circulator in Chennai is not automatically cheaper to run than an 18-inch model; compare rated input power, operating hours and the electricity tariff.
| Option | Operating-cost and maintenance signal | Choose it when |
|---|---|---|
| 24-inch wall circulator | Higher power demand than a smaller fan; fixed mounting saves floor space and reduces knocked-over equipment | You need longer air throw and stronger circulation across an open bay |
| 18-inch wall circulator | Lower consumption and simpler handling; coverage is narrower | Workers are close to the fan or the room has separate smaller zones |
| Pedestal fan | No wall installation; relocation is easy, but floor space and accidental damage increase | Airflow must follow changing tasks or temporary workstations |
| Designed exhaust or supply system | Higher installation and filter or duct maintenance; removes or replaces air rather than only mixing it | You must remove fumes, dust, solvent vapour or process heat |
Before choosing among Almonard heavy-duty wall fan options in Chennai, request the exact datasheet. Check delivered airflow, sound level, input power, speed control, phase, guard construction and duty rating; “heavy duty” is not a performance standard.
Clean the guard, blades and motor ventilation openings on the manufacturer’s schedule. Dust buildup cuts airflow and raises motor temperature. Reject the 24-inch model when the fan must push through filters, louvers or long ducting; use a fan curve and a system designed for static pressure instead.
Frequently asked questions
What is a 24-inch wall air circulator used for?
It moves and mixes air across factories, workshops, warehouses, garages and loading bays. It improves perceived cooling but does not lower room temperature, bring in fresh air or remove contaminated air.
Should you compare RPM or airflow when choosing an industrial wall fan?
Compare airflow delivery and the area the fan can serve first. RPM and a 24-inch sweep describe speed and size, but they do not alone show how much air reaches workers or equipment.
How do you choose the fan position and size for a factory?
Map occupied work areas, obstructions, doors and heat sources. Mount the fan to move air across the occupied zone, and use multiple fans when one unit cannot cover the layout without dead spots.
What should you verify before mounting a wall circulator?
Check that the wall and mounting hardware can carry the fan, confirm the voltage and circuit capacity, and assess dust, heat, moisture and corrosive conditions at the installation point.
How do operating cost and maintenance affect the final choice?
Compare rated power consumption, expected running hours, cleaning access, guard and blade inspection, motor service requirements and the availability of replacement parts before selecting a model.
