Choosing a flame-proof well glass fitting involves more than matching a 45-watt label. You need to identify the right fixture type, compare the flat-glass design and LED performance, then verify hazardous-area certification, cable entries, dimensions and service clearances before approving a Chennai supplier.
Key takeaways
- Match Ex marking, gas or dust group, temperature class and IP rating to the site.
- Compare 45W output, efficacy, colour temperature, driver type and warranty—not wattage alone.
- Choose flat glass for a lower profile; choose domed or prismatic glass for wider distribution.
- Request datasheets, test certificates, warranty terms and a line-by-line quotation.
What a well glass fitting is and where you use it
A well glass fitting is a compact, enclosed luminaire that directs protected light downward or toward a wall. Use it around tanks, process areas, machinery spaces, walkways, utility rooms, loading areas and industrial interiors where exposed lamps need protection.
Choose the mounting arrangement and service access before ordering:
- Ceiling mounting suits direct downward illumination.
- Wall or bracket mounting suits corridors, equipment faces and loading points.
- Pendant mounting helps position light below roof structures or over process equipment.
- Leave enough clearance to remove the glass cover, reach terminals and service the driver.
- Match the beam spread to mounting height and task area; a narrow beam can leave nearby floors dark, while a wide beam can waste light at height.
FLP and WP answer different questions. Flame-proof protection concerns hazardous atmospheres and requires complete Ex documentation; weather protection concerns dust and water ingress. An IP66 enclosure is not automatically flame-proof.
| Fitting | Physical purpose | Typical limitation |
|---|---|---|
| Bulkhead | Broad wall-mounted body with a front cover | Takes more wall space and gives less focused downward light |
| Floodlight | Larger reflector projecting a controlled long-distance beam | Excessive for close equipment or walkway illumination |
| Tube-light fitting | Linear light distribution along a longer housing | Needs more mounting length and gives less compact protection |
When comparing flp wp well glass for fitting suppliers in chennai, request the complete Ex marking, IP rating, mounting dimensions and photometric data—not only “FLP/WP.”
Flat glass versus domed and prismatic well-glass designs
A search for flat glass well glass fitting in Chennai usually means a well-glass luminaire with a level front lens or cover, not a separate protection method. The cover changes cleaning, light distribution and enclosure integrity, so compare the exact front-glass variant rather than a catalogue family.
| Design | Cleaning and face contamination | Light and mechanical behaviour |
|---|---|---|
| Flat | Wipes easily; oil and dust remain visible on the level face | Controlled glare and beam spread depend on reflector; exposed to direct impact |
| Domed | Curved surface sheds some deposits but is harder to wipe completely | Spreads light and reduces edge shadowing; projects farther into impact space |
| Prismatic | Grooves retain dust and oil and need more detailed cleaning | Widens distribution, softens glare and reduces shadowing; transmission varies with glass pattern |
Request these details for the quoted variant:
- Glass diameter, thickness, clear opening, retaining-ring arrangement and gasket material
- Reflector configuration and the photometric file, not a curve from another lens
- Enclosure alloy, surface treatment, stainless-steel grade, fastener material, gasket compound and corrosion warranty for salt-laden air or chemical vapour
In an Ex d enclosure, the glass, retaining ring, gasket and flamepath work as one certified system. Ordinary toughened glass, a locally cut pane or a differently sized gasket is not an approved replacement unless the manufacturer permits it in writing.
A flat face can also expose salt deposits sooner, so inspect the seal and retaining hardware during cleaning.
What to compare in an actual 45-watt LED configuration
A 45 watt flp well glass fitting in chennai must be confirmed as a complete, orderable LED configuration, not merely a body rated for a maximum 45-watt lamp.
Ask for delivered lumens, LED efficacy, colour temperature, beam spread or distribution, input-voltage range, power factor, total harmonic distortion, driver make and type, surge withstand, rated ambient temperature, and the LED and driver replacement policy.
Two 45-watt fittings can produce different useful illumination and impose different electrical loads:
| Option | What changes | Result |
|---|---|---|
| High-efficacy LED | More delivered lumens at the same input | Brighter work area and lower losses |
| Narrow beam | Concentrates light below the fitting | Higher task illuminance but stronger hotspots |
| Low power factor | Draws more apparent power | Greater cable and switchgear loading |
Require these installation details:
- Overall dimensions, weight, mounting-hole centres, bracket or pendant arrangement, and the clearance needed to remove the cover and service the driver.
- Cable-entry size and thread standard, permitted gland type, barrier or non-barrier requirement, separately certified glands, and stopping plugs for every unused entry.
- Terminal size and terminal material, plus the approved gasket and fastener arrangement.
Do not put a modern LED assembly into an existing flame-proof body because the dimensions match. The LED board, driver, thermal path, seals, glass, fasteners and flamepath are one certified assembly; changing any part can invalidate approval.
How to check Ex suitability before approving the fitting
Approve a luminaire only after matching its complete Ex marking to the site risk assessment. Use this sequence:
- Identify whether the location is Zone 1 or Zone 2.
- Confirm whether the hazard is flammable gas or combustible dust.
- Record the gas group, temperature class, equipment protection level (EPL) and maximum ambient temperature.
- Compare every value with the complete nameplate marking and certificate.
| Protection marking | Meaning | Check |
|---|---|---|
| Ex db | Flame-proof enclosure protection for gases | Match the gas group, T-class and zone |
| Ex tb | Protection by enclosure for combustible dust | Match the dust group, EPL and zone |
| Gb | Gas equipment protection level | Does not replace the zone assessment |
| Db | Dust equipment protection level | Does not replace the dust-risk assessment |
| IP65 or IP66 | Solids and water-ingress protection | Does not prove Ex suitability |
For a flame proof wp well glass in Chennai, request the certificate number, certificate holder, nameplate photograph, conformity or test documentation, installation instructions, general-arrangement drawing, photometric data, spare-parts list and warranty.
Check that the cable-gland type, barrier or non-barrier requirement, thread, entry size and stopping plugs are permitted by the certificate. Confirm that separately certified glands are acceptable. The stated T-class must remain suitable at Chennai’s maximum ambient temperature and the process hazard temperature, not merely at the LED’s normal operating temperature.
How to evaluate Chennai suppliers and compare quotations
Reject any quotation for flp wp well glass for fitting suppliers in chennai that lists only wattage, voltage and “FLP/WP.” Ask for a datasheet, general-arrangement drawing and these approval details:
| Quotation item | Accept | Reject |
|---|---|---|
| Model and variant | Exact model, flat-glass version and complete Ex marking | Catalogue family or “up to 45 W” |
| Certification | Certificate holder, certificate number, Ex marking, IP test evidence and installation instructions | “FLP” or “IP66” without documents |
| Optical data | Delivered lumens, efficacy, colour temperature, beam distribution and photometric file | Wattage alone |
| Mechanical data | Dimensions, weight, mounting centres, glass diameter and thickness, clear opening, retaining ring and gasket material | “Flat glass” without measurements |
| Cable entry | Entry size and thread, permitted certified gland, terminal details and approved stopping plugs | Gland selected after delivery |
| Project support | Service clearance, lead time, warranty and approved spare-parts list | No maintenance or replacement information |
A local supplier adds value by confirming Zone, gas or dust hazard, temperature class and maximum ambient temperature, then arranging the correct certified gland and checking mounting constraints. Shine Agencies can use this checklist when preparing a Chennai commercial or industrial technical submittal, rather than merely reselling a catalogue line.
For solar or energy-efficient flame proof wp well glass in chennai, request operating hours, usable battery capacity, autonomy at the required light level, charging conditions, controller protections and low-charge dimming behaviour. Confirm that certification covers the complete hazardous-area luminaire, not only its driver or another component.
Related products

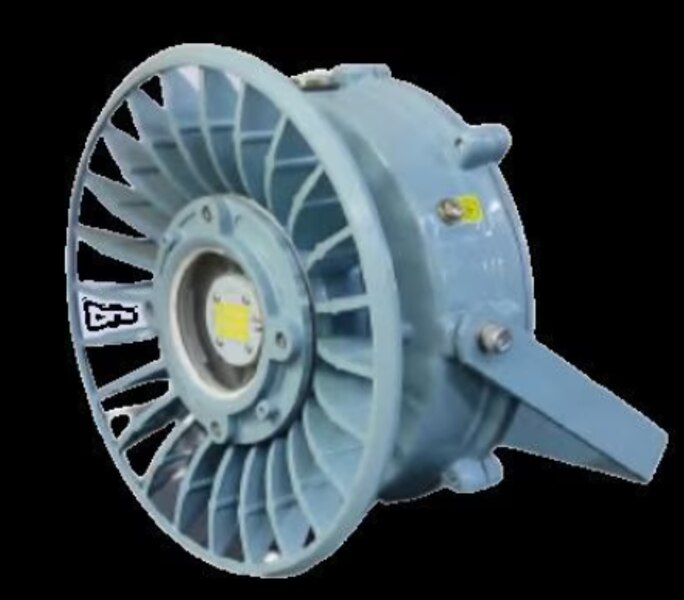

 | Flame Proof industrial Lighting FLP-WP WELL GLASS FITTING UPTO 45 W LED (FLAT GLASS PRODUCT : CAT.NO. – WG/1240 ENCLOSURE : FLAME PROOF (Ex –d ), Ga s G r o u p I I A , I I B , I I C As per IS/IEC 60079-1 : 2014 PROTECTION : WEATHER... View product → |
 | Flame Proof industrial Lighting Flame Proof Well glass Fitting PRODUCT : CAT. NO. – WG/1240 ENCLOSURE : FLAME PROOF (Ex –d ), Gas Group IIA , IIB , IIC As per IS/IEC 60079-1 : 2014 PROTECTION : WEATHER PROOF IP –... View product → |
Frequently asked questions
What is a well glass fitting used for?
It is an enclosed luminaire used around tanks, process areas, machinery spaces, walkways, utility rooms, loading areas and industrial interiors where exposed lamps need protection.
What is the difference between flat, domed and prismatic well-glass designs?
Flat glass gives a lower-profile fitting and a more controlled appearance. Domed glass provides more clearance and a broader light spread, while prismatic glass uses its patterned surface to distribute light and reduce harsh glare.
What should you compare in a 45-watt FLP well-glass fitting?
Compare delivered lumens, efficacy, colour temperature, colour rendering, beam or distribution pattern, driver type, operating temperature, ingress protection, warranty and maintenance access.
How do you check whether a well-glass fitting is Ex suitable?
Read the nameplate and certificate for the protection method, gas or dust group, temperature class, equipment protection level, ambient-temperature range and IP rating, then match every marking to the hazardous-area classification.
How should you compare Chennai well-glass fitting suppliers?
Request identical technical specifications, delivery terms, taxes, installation scope, warranty, replacement policy and documentation from each supplier, then compare like-for-like quotations rather than headline prices.
