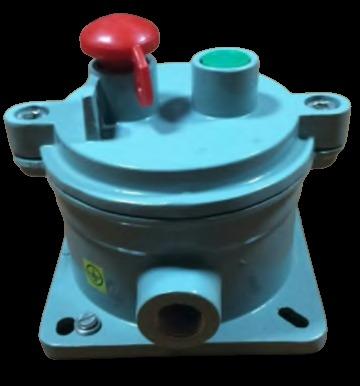

FLP PUSH BUTTON STATION (LCS) (DIRECT ENTRY)
In stock
Description
PRODUCT : CAT. NO.- PBS/105 ENCLOSURE : FLAME PROOF (Ex –d ), G a s G r o u p I I A , I I B
As per IS/IEC 60079-1 : 2014
PROTECTION : WEATHER PROOF IP – 66 AS PER I S / I E C 6 0 5 2 9 : 2 0 0 1
(Reaffirmed 2014)
AREA & TEMP. CLASS : Ex db IIA,IIB T6 Gb ( EX tb/tc IIIC T85 C Db/Dc
(ZONE 1 & 2 & Zone 21 & 22 )
CERTID=FICATION : CIMFR, BIS, PESO
TEMP CLASS : T6
MATERIAL : DIE CAST ALUMINIUM ALLOY
FINISH : EPOXY POWDER COATED SHADE AS PER IS : 5
EARTHING : 1 No INTERNAL & 2 No’s EXTERNAL
HARDWARE : STAINLESS STEEL
GASKET : 'O' RING ENDLESS GASK E T N E O P R E N E / S I L I C O N
NAME PLATE : SS NAME PLATE CUM WARNING PLATE
ENTRIES : 2 Nos M20 / ½ “ NPT / EQUIVALENT
