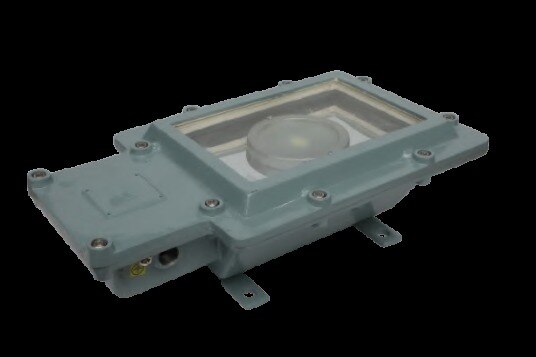

BULKHEAD IIA & IIB UP TO 45 W LED

PRODUCT : CAT. NO.- BH/124

ENCLOSURE : FLAME PROOF (Ex –d) , G a s G r o u p I I A , I I B

As per IS/IEC 60079-1: 2014

AREA & TEMP. CLASS : Ex db IIA & IIB C T6 Gb (EX TB / TC IIIC T85 C Db/Dc

(ZONE 1 & 2, ZONE 21 & 22)

CERTIFICATION : CIMFR, BIS, PESO

TEMPERATURE CLASS : T6

MATERIAL : DIE CAST ALUMINIUM ALLOY

FINISH : EPOXY POWDER COATED SHADE AS PER IS: 5

EARTHING : 1 No INTERNAL & 2 No’s EXTERNAL

HARDWARE : STAINLESS STEEL

GASKET : 'O' RING ENDLESS GAS K E T N E O P R E N E / S I L I C O N

NAME PLATE : SS NAME PLATE CUM WARNING PLATE

GLASS : HEAT RESISTANT CLEAR TYPE-A TOUGHENED

ENTRIES : 2 Nos M20 / 1⁄2 “NPT / EQUIVALENT

VOLTAGE : 140 V – 270 V (240 V AC)

POWER FACTOR : ≥ 0.95

INPUT FREQUENCY : 50 Hz.

EFFICACY : ≥ 100 LUMEN PER WATT

COLOUR (CCT) : 3000K / 5700K / 6500 K / O R A S S P E C I F I E D

CRI : ≥ 80 RA

THD : ≤ 10 % THD

SURFACE TEMP. : MAX. 70 ̊

SURGE PROTECTION : 10 KV SPD

LED MAKE : CITIZEN / OSRAM / BRID G E L U X / E Q U I V A L E N T

DRIVER MAKE : OSRAM / PHILIPS / FULH A M / E Q U I V A L E N T

- BIS APPROVED
